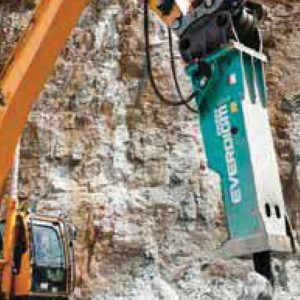

Everdigm Hammer Rock Breakers

Everdigm’s extensive range of Rock Breakers are designed to excel in the toughest construction & demolition job sites. With an innovative design and only using the highest quality parts, Everdigm Rock Breakers are built to maximise productivity whilst minimising maintenance and downtime.

Everdigm Hammer Rock Breakers

  EHB008 EHB01 EHB02 EHB03 EHB04 EHB05 EHB06 EHB10
Working Weight1 kg 80 121 121 147 249 315 472 555
Required Oil Flow lpm 12 – 30 15-25 20-35 30-50 35-65 45-90 60-110 80-140
Operating Pressure bar 100 – 130 100 – 130 100 – 130 100 – 130 110-140 130-170 130-170 140-180
Blow Frequency Low speed mode bpm
High speed mode bpm 550 – 1,300 700-1,200 700-1,200 550-1,000 550-1,000 550-1,000 520-1,000 500-1,000
Impact Energy2 Low speed mode joule
High speed mode joule 110 180 200 300 450 700 1,000 1,350
Tool Shank Diameter mm 42 45 45 50 58 68 80 93
Applicable Carrier Weight tonne 0.6-1.5 0.7-2.5 1.0-4.0 1.5-4.5 2.5-6.0 3.5-8.0 5-11 7-15

1 Total weight including standard tool, standard mounting adapter and spacers but excluding hydraulic hoses, fittings and mounting pins.

2 Measured in accordance with the certified test procedure which complies with the AEM (former CIMA) tool energy rating for hydrulic breakers.
* Materials and specifications are subject to change without prior notice.

  EHB13 EHB17 EHB20 EHB25 EHB30 EHB40 EHB50 EHB70
Working Weight1 kg 1,029 1,269 1,539 1,799 2,461 3,433 4,119 6,484
Required Oil Flow lpm 80-140 110-170 100-150 130-180 170-240 200-280 230-330 320-420
Operating Pressure bar 140 – 180 160-180 160-180 160-180 165-185 165-185 165-185 165-185
Blow Frequency Low speed mode bpm 380-700 350-600 340-550 330-500 310-490 330-450 250-370 280-370
High speed mode bpm 550-850 500-750 440-700 430-650 400-680 420-600 350-500 370-480
Impact Energy2 Low speed mode joule 2,500 2,800 3,500 4,300 6,100 7,600 10,400 13,000
High speed mode joule 2,150 2,200 2,800 3,200 4,200 6,000 7,900 10,000
Tool Shank Diameter mm 105 117 125 135 150 165 180 205
Applicable Carrier Weight tonne 12-20 14-24 16-25 20-30 26-35 32-45 40-70 60-110

1 Total weight including standard tool, standard mounting adapter and spacers but excluding hydraulic hoses, fittings and mounting pins.

2 Measured in accordance with the certified test procedure which complies with the AEM (former CIMA) tool energy rating for hydrulic breakers.
* Materials and specifications are subject to change without prior notice.
