MaxBrio Sheet Piler

  • Automatic 360°rotation function
  • High frequency vibration & powerful centrifugal force
  • Highly effective for driving & extracting sheet pile, tube, H-beam
  • Extremely low noise & maximum excavator protection
  • Proven economic feasibility, best mobility and safety

MaxBrio Sheet Piler

  DPD350 DPD450 DPD600 DPD700
Applicable weight tonne 18-27 28-36 32-40 36-45
Frequency rpm 3000 2700 2750 2700
Hz 50 45 45 45
Centrifugal force kN 300 390 500 690
Eccentric moment kgm 3.5 4.5 6.1 7
Ampitude mm 6.8 7.2 8.8 14
Setting oil pressure psi 3600 3600 3600 3900
Require oil flow l/min 180 220 220 330

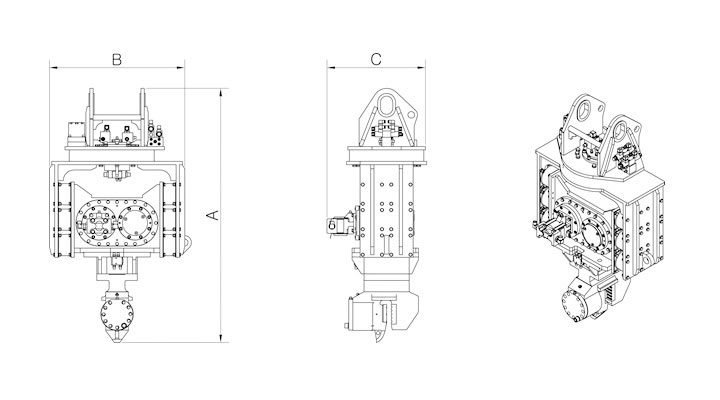

Dimensions Height (a) mm
1944 2050 2100 2205
Length (b) mm
1020 1080 1363 1455
Width (c) mm
600 650 757 770
Clamping jaw (d) mm
35 40 40 40
Rotation / Tilt angle   360° 360° 360° 360°
Weight Main body kg 1400 1800 1900 1980
Extension boom kg
590 630 630 690

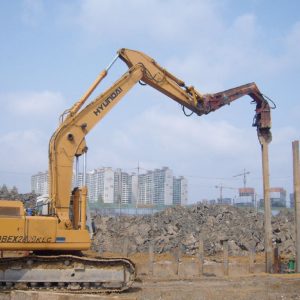

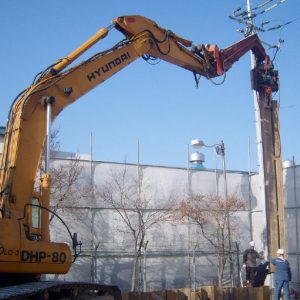

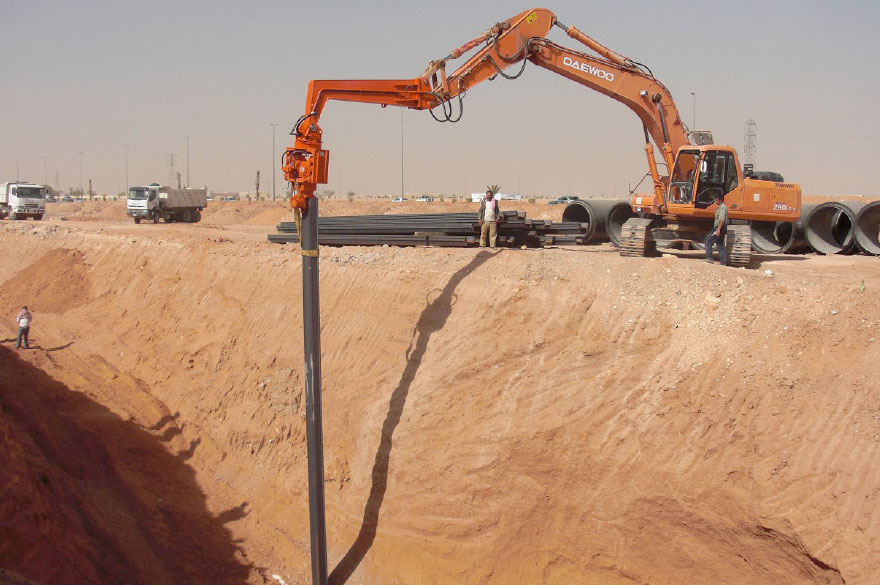

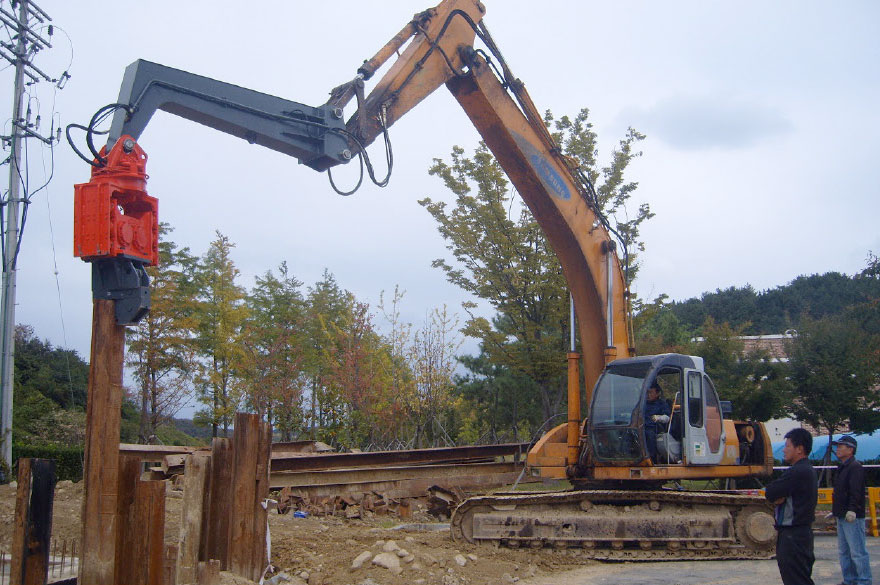

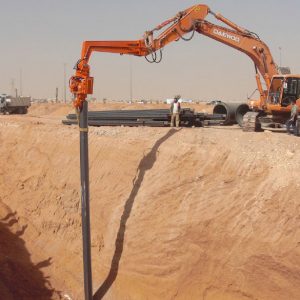

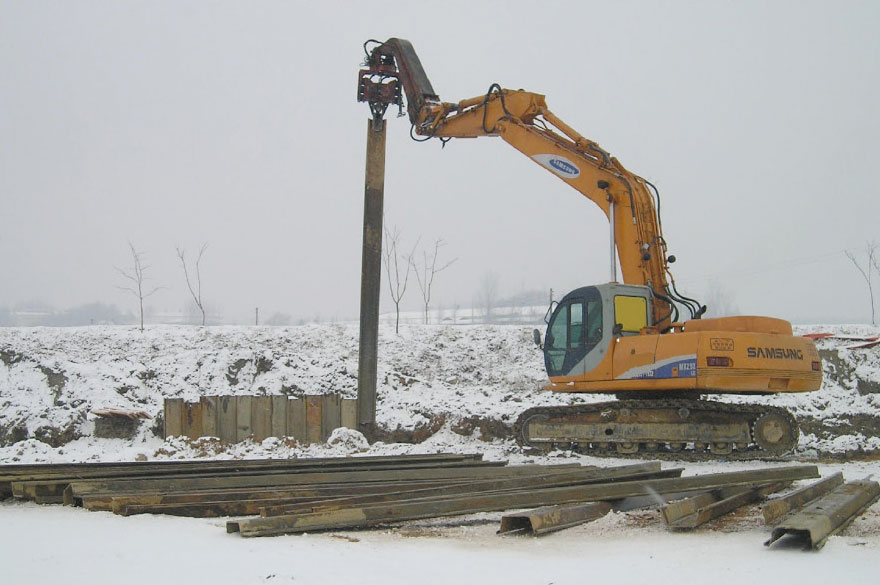

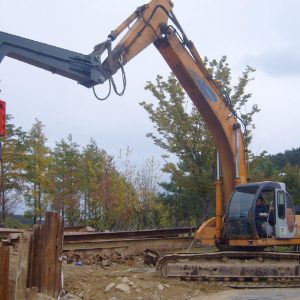

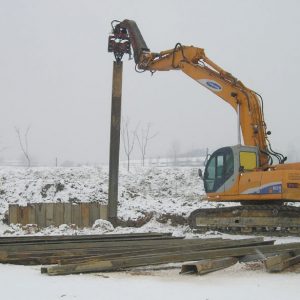

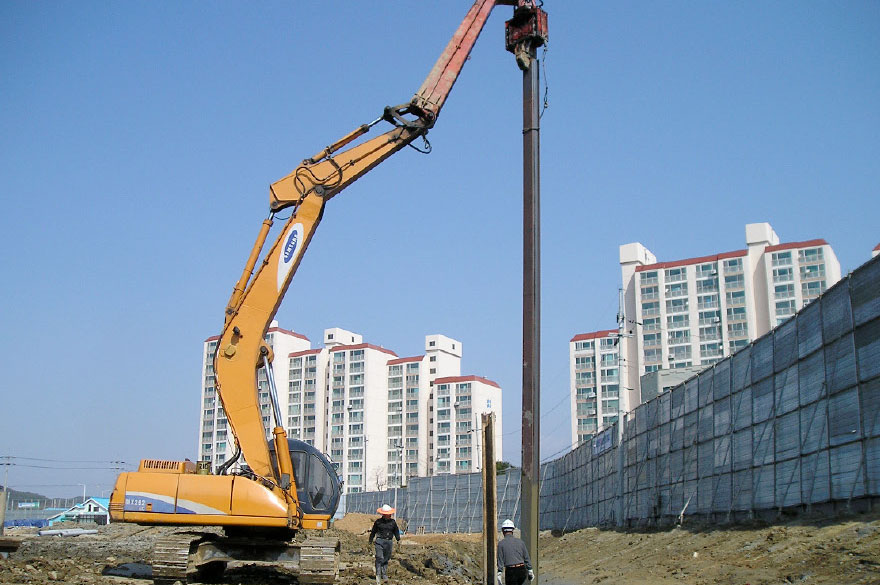

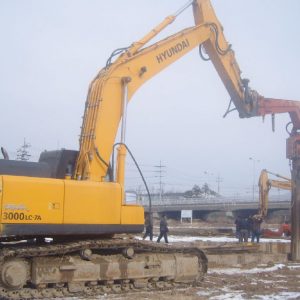

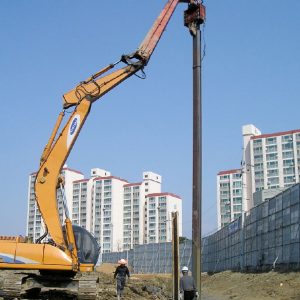

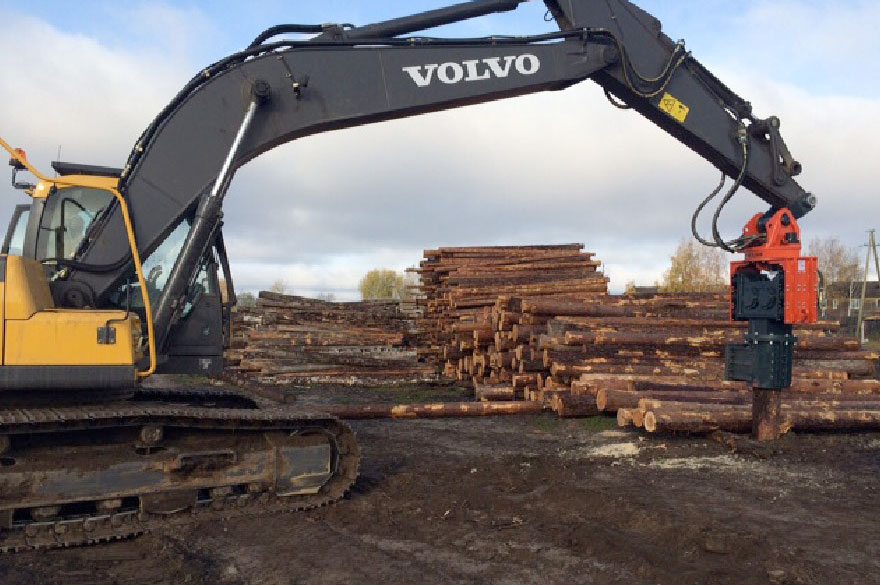

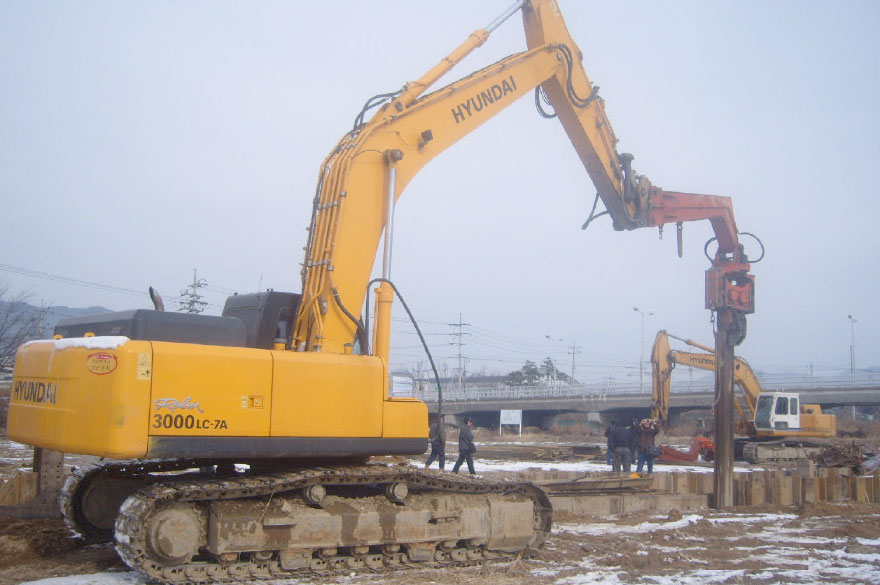

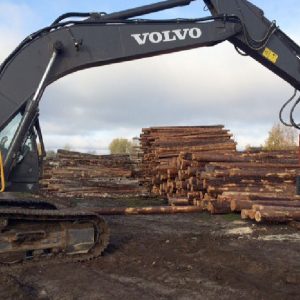

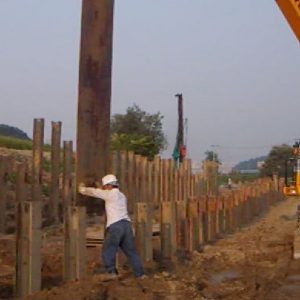

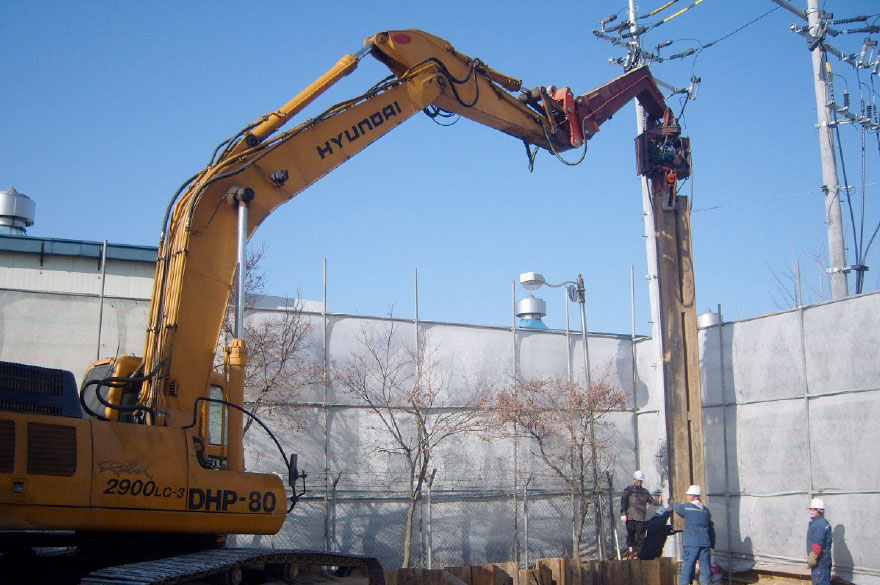

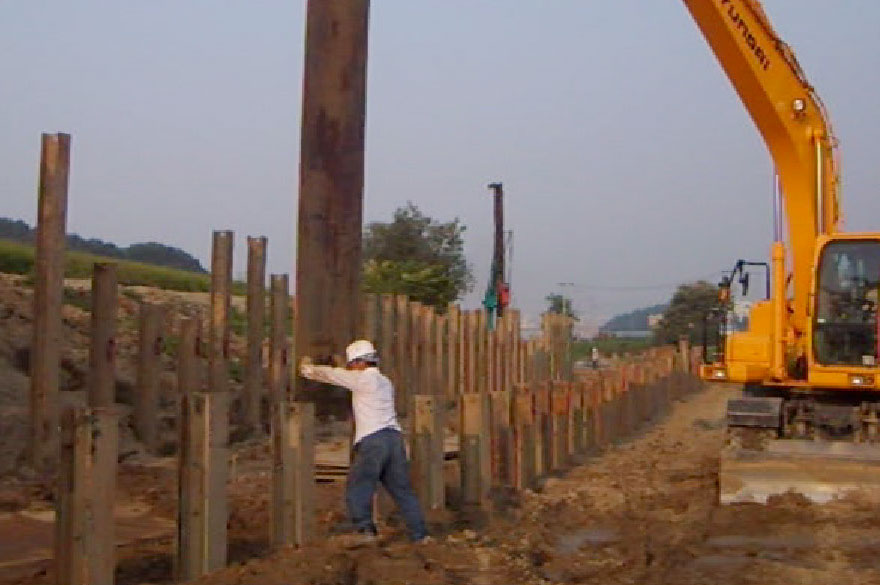

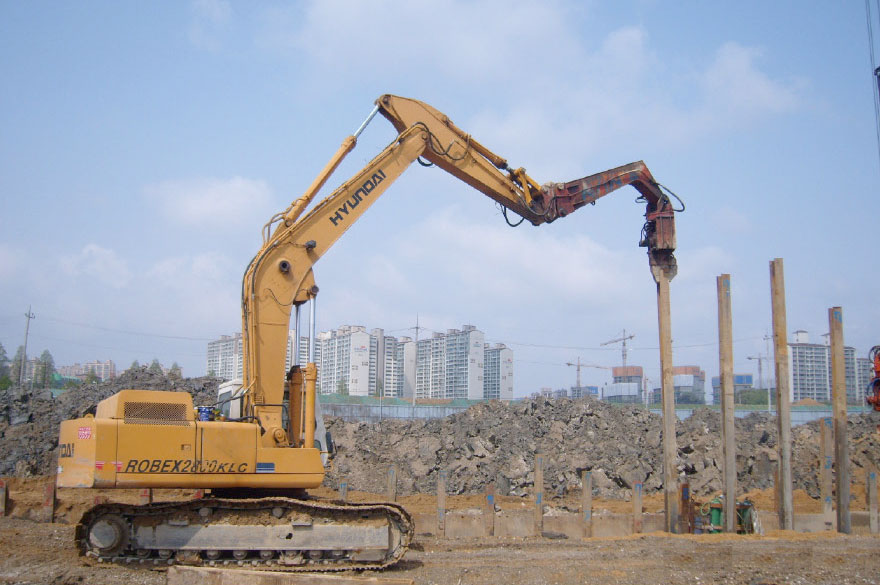

Gallery

For more infomation call our friendly team today
