Hydraulic hammers

The world’s best-known and most-respected brand of hydraulic hammers, Rammer offers a comprehensive range of powerful, productive and durable attachments that are suitable for carriers in the 0.6 to 100 tons operating weight class.

The Rammer Large range is unsurpassed in its innovation and reliability and offers class-leading power-to-weight characteristics that mark them as the best in their class.

Rammer’s product selection is supported by a dedicated global dealer network with ready access to Genuine Rammer parts and a wealth of operational knowledge and experience to ensure that your Rammer hammer continues to contribute to your company’s profitability for its entire working life.

Rammer Breaker Small

Rammer Breaker Medium

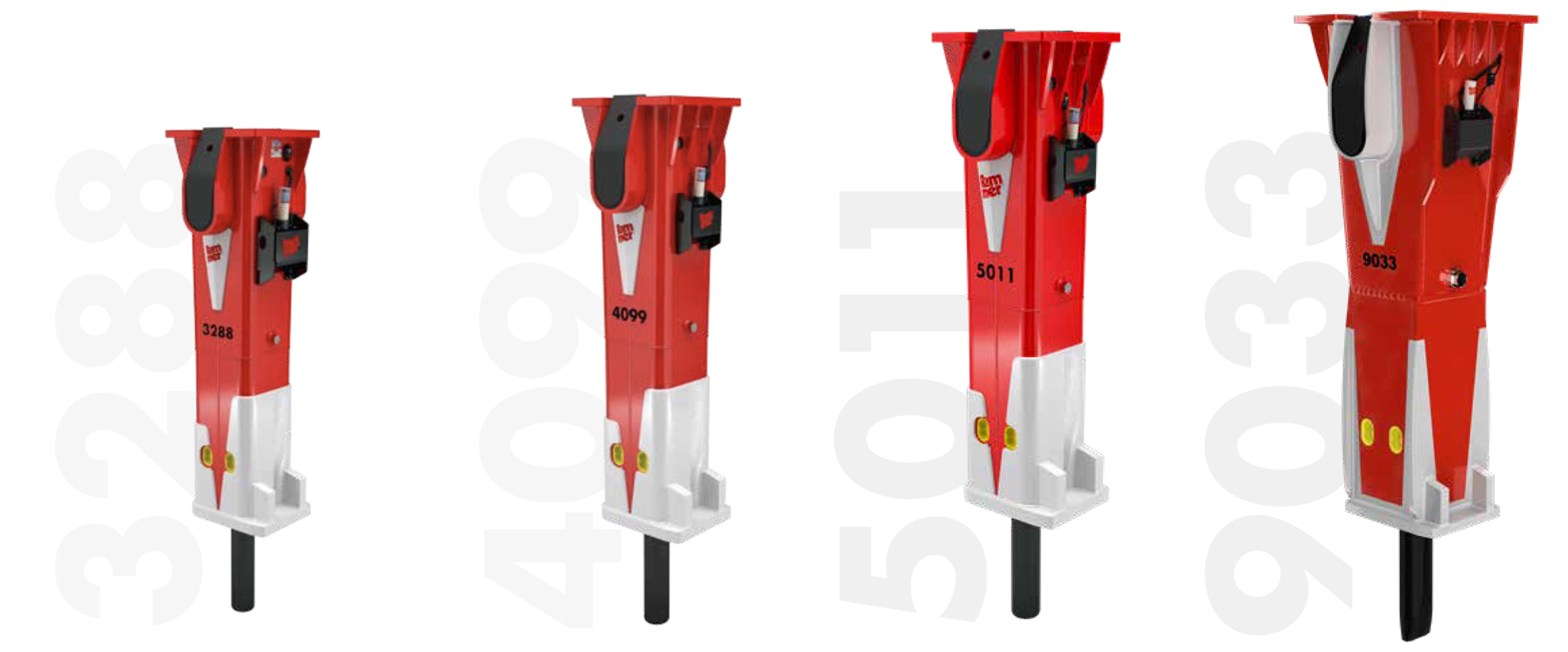

Rammer Breaker Large

rammer breakers logo

  3288 4099 5011 9033
Min. Working Weight kg 2400 – 2500 3380 – 3540 4750 7400
Oil Flow Range lpm 160 – 250 250 – 350 280 – 380 360 – 460
Operating Pressure bar 150 – 160 150 – 160 160 – 170 170 – 180
Pressure Relief bar
 220 – 240 210 – 230 220 – 230 230 – 240
Back Pressure bar
 10 12 10 10
Impact Rate Long stroke
 bpm 370 – 630 400 – 560 370 – 530 300 – 520
Short stroke bpm 460 – 740 520 – 700 450 – 620 355 – 645
Noise Level Measured dB 124 126 122 127
Guaranteed dB 128 130 126 131
Input Power kw
 67 93 108 138
Tool Shank Diameter mm 142 166 190 215
Applicable Carrier Weight tonne 26-42 36-55 43-80 65-120

* Materials and specifications are subject to change without prior notice.

  1533 1655 2155 2166 2577
Min. Working Weight kg 870 – 990 1080 1240 – 1280 1400 1760
Oil Flow Range lpm 80 – 140 90 – 130 490 – 780 120 – 180 140 – 200
Operating Pressure bar 140 – 160 135 – 145 140 – 160 140 – 160 135 – 145
Pressure Relief bar
 220 – 240 190 – 240 220 – 240 210 – 240 190 – 240
Back Pressure bar
 10 10 10 10 10
Impact Rate   bpm 550 – 950 500 – 920 490 – 780 430 – 790 350 – 450
Noise Level Measured dB 120 123 124 121 120
Guaranteed dB 124 127 128 125 124
Input Power kw
 37 31 48 48 48
Tool Shank Diameter mm 105 115 118 125 135
Applicable Carrier Weight tonne 10-19 12-20
 14-26 16-26 21-32

* Materials and specifications are subject to change without prior notice.

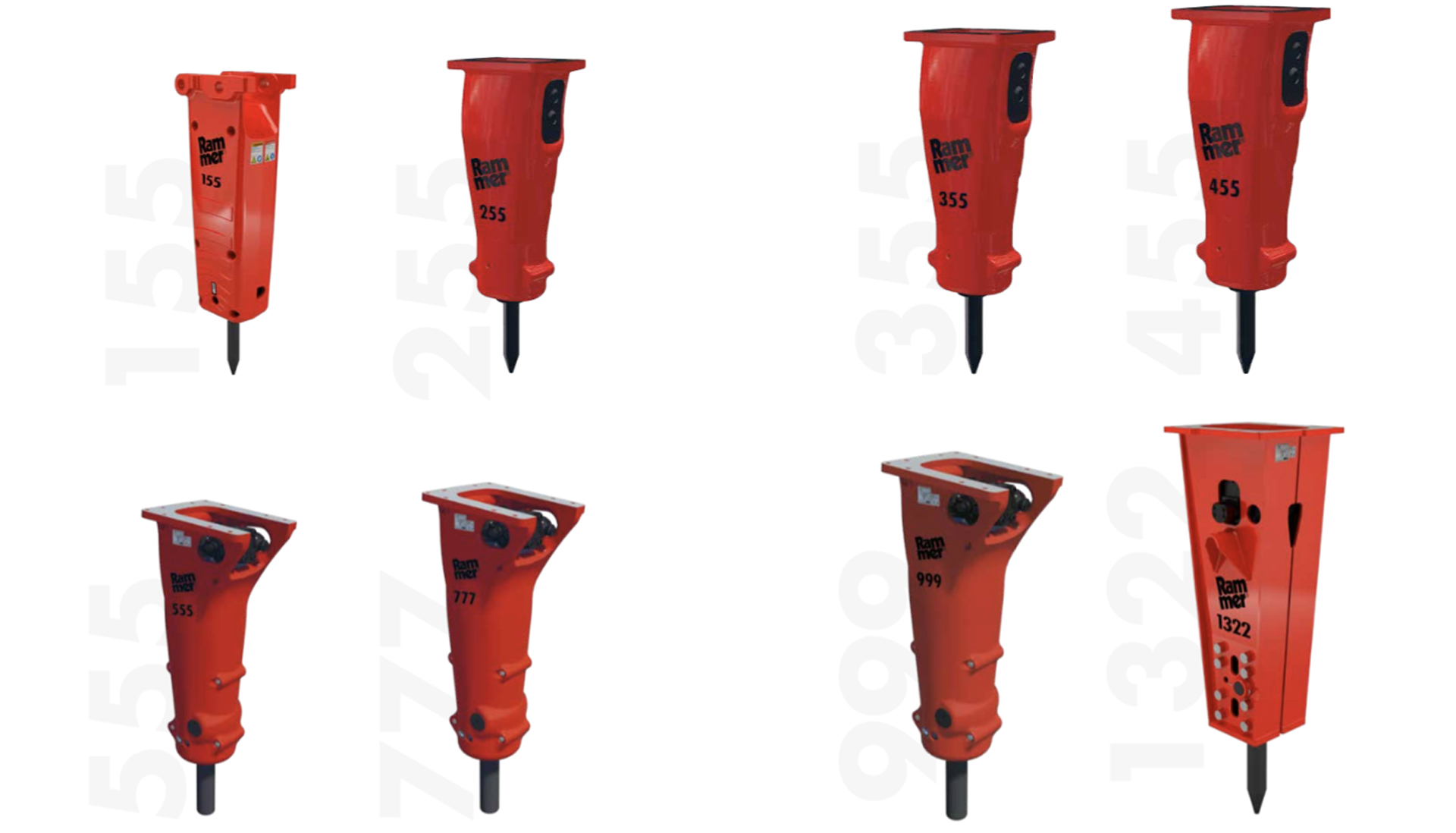

  155 255 355 455 555 777 999 1322
Min. Working Weight kg 90 110 150 230 275 385 505 850
Oil Flow Range lpm 15 – 33 15 – 35 25 – 55 40 – 70 35 – 90 40 – 120 50 – 150 60 – 120
Operating Pressure bar 80 – 130 95 – 150 90 – 150 100 – 170 90 – 140 90 – 140 100 – 140 125 – 150
Pressure Relief bar
 220 220 220 220 220 220 220 220
Back Pressure bar
 20 30 30 30 30 30 30 20
Impact Rate   bpm 1000 – 2600 600 – 3200 800 – 3000 700 – 2600 600 – 1800 500 – 1700 500 – 1700 500 – 1000
Noise Level Measured dB 115 15 114 115 118 120 123 136
Guaranteed dB 119 119 118 119 122 124 127 140
Input Power kw
 7.2 8.8 13.8 19.8 21 28 35 30
Tool Shank Diameter mm 36 40 48 56 72 80 90 95
Applicable Carrier Weight Mini-excavator tonne 0.8-1.8
1.2-2.5
 1.6-3.6  2.7-5.2 3.0-3.8
4.0-9.5
  5.5-13.0 9-15
Skid-steer 0.6-1.3 0.8-1.7
 1.1-2.4 1.8-3.5 1.9-5.3
2.6-6.3
 3.9-8.7
–

* Materials and specifications are subject to change without prior notice.

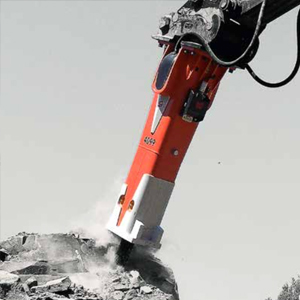

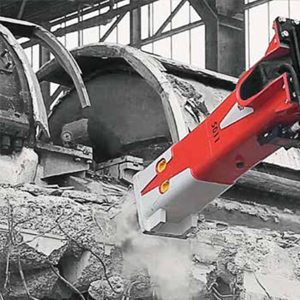

Gallery

Rammer Rock Breakers
Rammer Rock Breakers
Rammer Rock Breakers
Rammer Rock Breakers
Rammer Rock Breakers
Rammer Rock Breakers

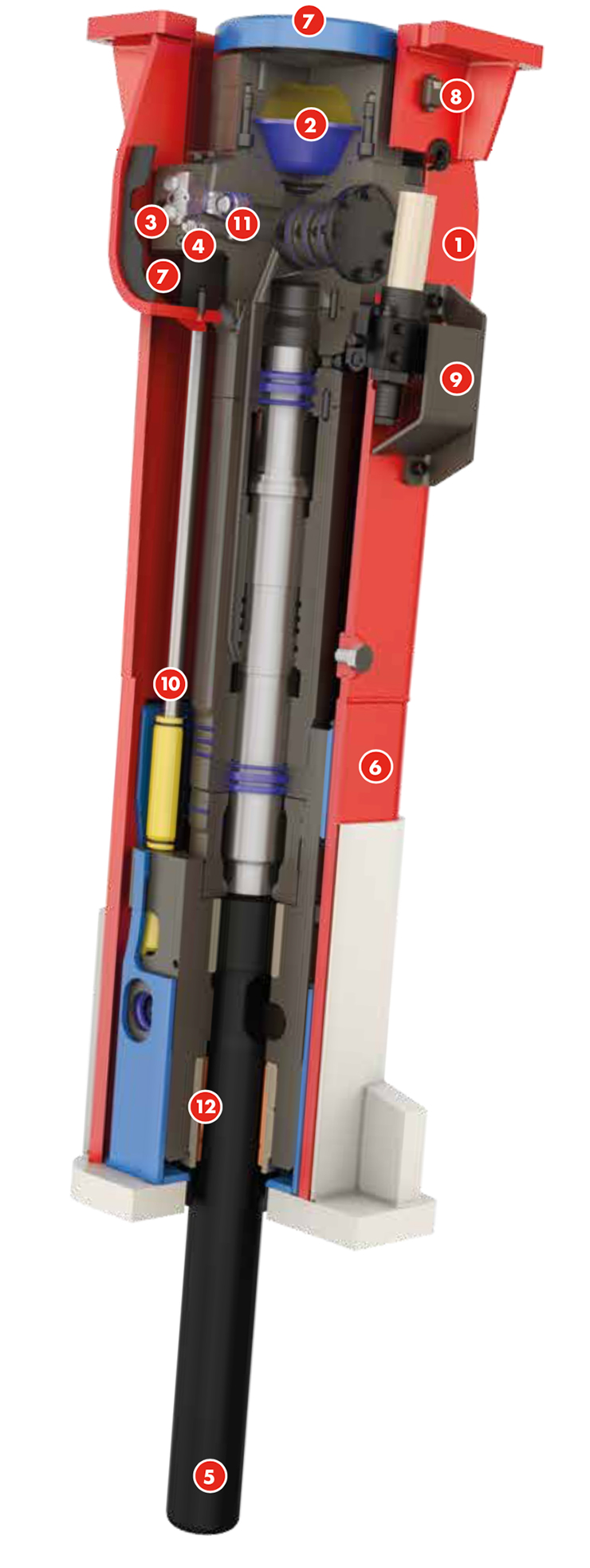

OUR FEATURES – YOUR BENEFITS



INCREASE YOUR PRODUCTIVITY
  • 1) FBE (Fixed Blow Energy)
    A built-in pressure control valve maintains hydraulic pressure levels to ensure that every blow delivers the maximum power possible for optimum productivity.
  • 2) Membrane type accumulator
    Membrane type accumulator eliminates nitrogen leakages, ensuring maximum piston acceleration and removing the need for time consuming recharging.
  • 3) Stroke selector
    Fitted as standard on all Large range hammers (except 7013) Stroke selector is designed to optimize hammer operating. It allows operator to match hammer to material and application, delivering more frequent, softer blows in softer materials and fewer high impact blows in hard rock.
  • 4) IBP (Idle Blow Protection)
    Fitted as standard on all Large range hammers (except 7013), IBP ensures the hammer cannot be operated until pressure is placed on tool. This eliminates tie rod stress, reduces oil overheating and protects against premature failures.
  • 5) Wide tool selection
MINIMIZE YOUR MAINTENANCE COSTS
  • 8) Ramdata II
    The Ramdata II service indicator is designed to help hammer
    operators and service personnel get information about the service interval status, service history and accumulated working history of the hammer.
  • 9) Ramlube (Different options)
    Rammer offers two types of automatic greasing systems for its Large Hammer Range:
    Ramlube I – Machine-mounted
    Ramlube II – Hammer-mounted
    Both Ramlube devices maintain correct greasing levels, protect the tool and reduce owning and operating costs.
  • 2) Membrane type accumulator Membrane type accumulator eliminates nitrogen leakages,
    ensuring maximum piston acceleration and removing the need for time consuming recharging.
  • 12) TS (Tool Saver) bushing
    Rammer Large range hammers can be equipped as a retrofit
    with a field replaceable insert that increases service life of the tool and tool bushing.
PROTECT YOUR WORKING ENVIRONMENT
  • 6) Heavy duty housing
    Fitted as standard, heavy duty housings feature a robust structure, minimum number of holes and plastic wear plates for optimum hammer protection and noise reduction.
  • 7) Top buffer and side pads
    The unique Rammer vibration absorption system consists of three buffers – one upper buffer and two side pads – that prevent the transmission of vibration to protect both the breaker and the carrier’s boom, stick and swing gears and to isolate the operator
MAXIMIZE YOUR UTILIZATION
  • 6) Heavy duty housing
    Fitted as standard, heavy duty housings feature a robust
    structure, minimum number of holes and plastic wear plates for optimum hammer protection and noise reduction.
  • 10) VIDAT
    Vibration Dampened Tie Rods, spherical tie rod nuts and
    damper bushings ensure piston moves freely for longer, more productive working life.
  • 11) Ramvalve
    Ramvalve detects overflow, prevents damage from system overload and protects against premature failure. Ramvalve is standard on all Large range hammers (except 7013).
