Simex Rotary Cutters

Simex Rotary Cutters

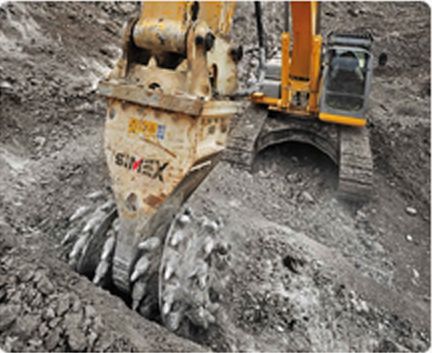

Ideal for trenching, profiling and resurfacing rock and cement walls, quarrying, demolitions, dredging and finishing operations. With its low noise & vibration, the Simex TF Rotary Cutters are suitable to use near schools, hospitals, infrastructure and sensitive areas.

Suits 2.5 to 60 tonne excavators.





SPECIFICATIONS

 Model Measurements (mm) Excavator
weight (ton)
Hydraulic
motor power (kw (cv))
Required oil
pressure (bar)
Required
oil flow (l/min)
Max
torque (KNm)
Max cutting
force (KN)
Weight
(Standard drum –
no bracket) (kg)

  A (Standard
Drum)
A (Wall profiling) B C D
TF50           1.2 – 2.5   175 – 250 20 – 35 0.59 5.1 90
TF100           2 – 4   175 – 300 30 – 50 1.06 8.1 170
TF200 565 650 380 75 110 2.5 – 7 27 – (37) 350 – 200 40 – 80 2.5 13.5 300
TF400  625 750 450 75 130 6 – 12 37 – (50) 350 – 200 65 – 120 4.6 20.3 470
TF600  700 750  450 75 130 9 – 16  50 – (68) 350 – 200 90 – 150 6.9 27.6 640
TF800 800 1000 590 95 150 14 – 22 61 – (83) 350 – 200 105 – 190 9.5 31.8 1035
TF1000 900 1200 660 110 160 20 – 34 87 – (118) 350 – 210 150 – 250 15.6 47.3 1575
TF2000 1100 1400 710 120 175 28 – 45 112 – (152) 400 – 210 170 – 340 19.1 53.9 2240
TF3000 1250 1400  730 120 300 40 – 60 165 – (225) 400 – 210 250 – 480 38.2 103.2  3650
